Gaussian Kernel Bandwidth Optimization with Matlab Code

10 Replies

Gaussian Kernel Bandwidth Optimization with Matlab Code

In this article, I write on “Optimization of Gaussian Kernel Bandwidth” with Matlab Code.

First, I will briefly explain a methodology to optimize bandwidth values of Gaussian Kernel for regression problems. In other words, I will explain about “Cross validation Method.”

Then, I will share my Matlab code which optimizes the bandwidths of Gaussian Kernel for Gaussian Kernel Regression. For the theory and source code of the regression, read my previous posts <link for 1D input>, <link for multidimensional input>. This Matlab code can optimize bandwidths for multidimensional inputs. If you know the theory of cross validation, or if you don’t need to know the algorithm of my program, just download the zip file from the below link, then execute demo programs. Probably, you can use the program without big difficulties.

<Download>

1. Bandwidth optimization by a cross validation method

The most common way to optimize a regression parameter is to use a cross validation method. If you want to know about the cross validation deeply, I want to recommend to read this article. Here I will shortly explain about the cross validation method that I am using. This is just a way of cross validation.

1. Randomly sample 75% of the data set, and put into the training data set, and put the remaining part into the test set.

2. Using the training data set, build a regression model. Based on the model, predict the outputs of the test set.

3. Compare between the predicted output, and the actual output. Then, find the best model (best bandwidth) to minimize the gap (e.g, RMSE) between the predicted and actual outputs.

2. Matlab code for the algorithm

You can download all functions and demo programs from the below link.

<Download>

This program is for multidimensional inputs (of course, 1D is also OK). The most important function is Opt_Hyp_Gauss_Ker_Reg( h0,x,y ) and it requires Matlab optimization toolbox. I am attaching two demo programs and their results. I made these demo programs as much as I can. So, I believe that everybody can understand.

<Demo 1D>

demo_1d

demo_1d_result

<Demo 2D>

demo_2d demo_2d_result



I wish this post can save your time and efforts in your work. If you have any question, please leave a reply.

-Mok-

—————————————————————————————————

I am Youngmok Yun, and writing about robotics theories and my research.

My main site is http://youngmok.com, and Korean ver. is  http://yunyoungmok.tistory.com.

—————————————————————————————————





Gaussian Kernel Regression for Multidimensional Feature with Matlab code

4 Replies

Gaussian Kernel Regression for Multidimensional Feature with Matlab code (Gaussian Kernel or RBF Smoother)

I am sharing a Matlab code for Gaussian Kernel Regression algorithm for multidimensional input (feature).

In the previous post (link), I posted a theory of Gaussian Kernel Regression, and shared a Matlab code for one dimensional input. If you want to know about the theory, read the previous post. In the previous post, many visitors asked me for a multidimensional input version. Finally I made a Gaussian Kernel Regression Program for a general dimensional input

You can download the program from this link.

<Download>

I wrote a demo program to show how to use the code as easy as possible.

The below is the demo program, and a demo result plot. In this demo program, the dimension of input is 2 because of visualization, but it is expendable to an arbitrary dimension.



demo_codedemo_result



For the optimization of kernel bandwidth, see my other article <Link>.



I wish this program can save your time and effort for your work.

If you have any question, please leave a reply.

—————————————————————————————————————————–

I am Youngmok Yun, and writing about robotics theories and my research.

My main site is http://youngmok.com, and Korean ver. is  http://yunyoungmok.tistory.com.

—————————————————————————————————————————–







Monte Carlo Integration with a simple example

Leave a reply

In this article, I will explain Monte Carlo Integration.

How can we do the “Integration”?

In many cases, the integration is not easy in an analytical method.

The Monte Carlo Integration method is a numerical integration method.

Let’s think about the below example. MCI1



The goal of this integration is to find the area of pink region.

The key idea of the Monte Carlo integration is to find \hat{f}} to represent f. See below.

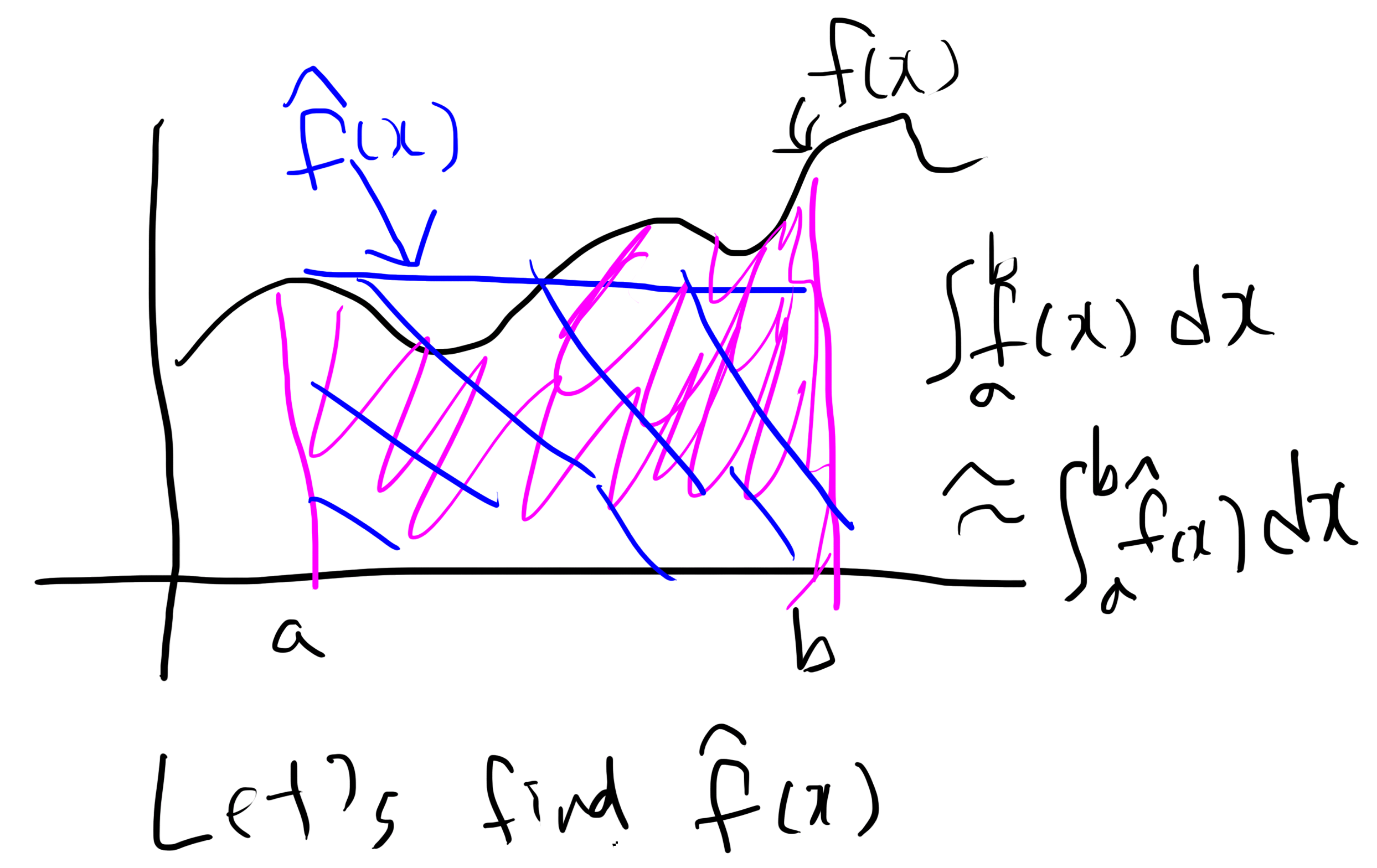

MCI2Then, How can we find the \hat{f}} ? the Monte Carlo Integration method uses “Expectation method” (Average) See below

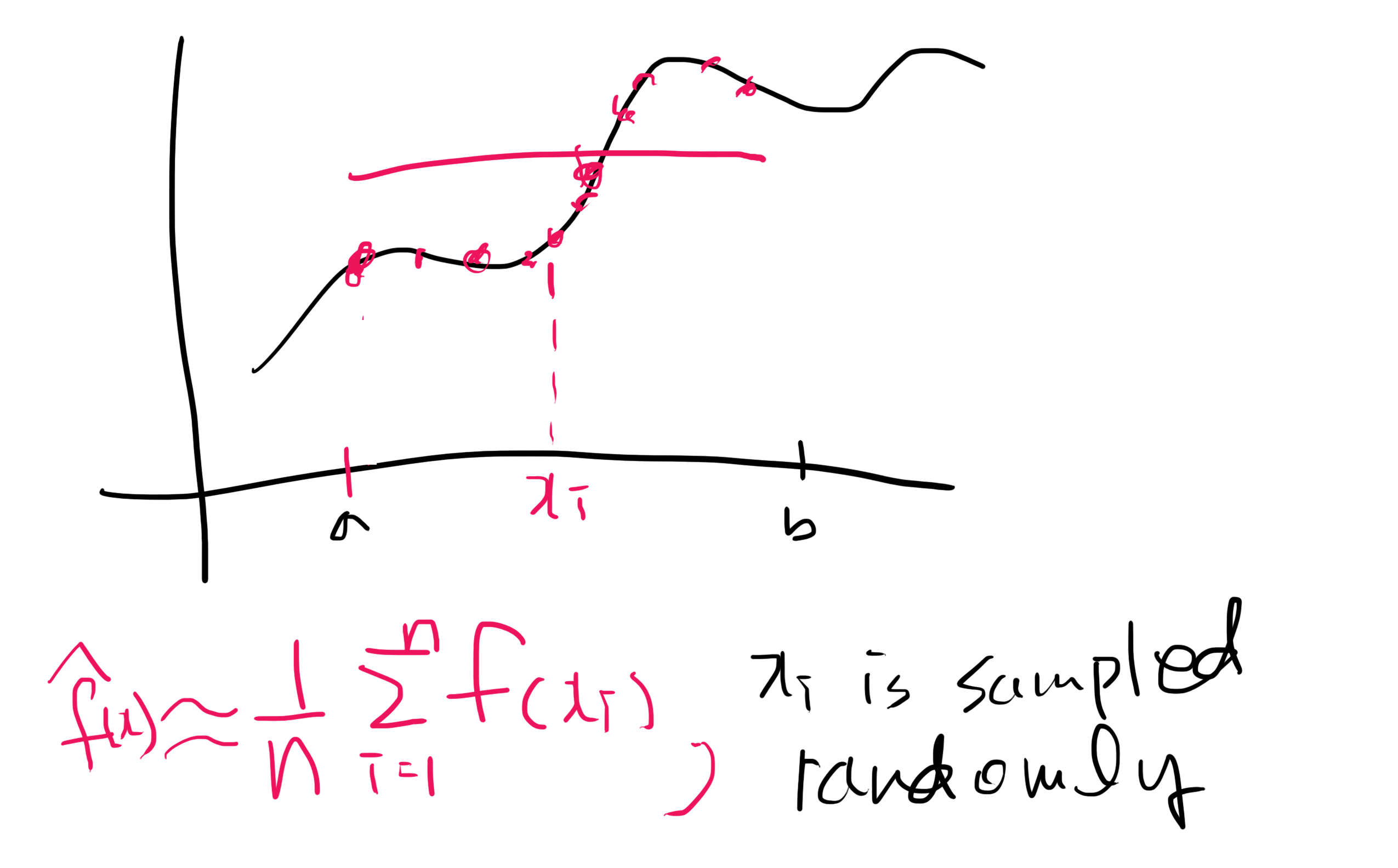

MCI3



With the random sampling method, we can get the \hat{f} by calculating the mean value.

This is a very useful way especially for the calculation of Bayesian posterior.



The below is an example of Monte Carlo Integration.

I will solve this problem  \int^2_{-1}x dx

>> N=10000;
>> 3*sum(rand(N,1)*3-1)/N

ans =

1.5202

Here \hat{f} is < sum(rand(N,1)*3-1)/N > and the range of the integration is 3.

Then, good luck

For more detail, I recommend to read the below article.

http://web.mit.edu/~wingated/www/introductions/mcmc-gibbs-intro.pdf



—————————————————————————————————————————–

I am Youngmok Yun, and writing about robotics theories and my research.

My main site is http://youngmok.com, and Korean ver. is  http://yunyoungmok.tistory.com.

—————————————————————————————————————————–

Gaussian kernel regression with Matlab code (Gaussian Kernel or RBF Smoother)

20 Replies

Gaussian kernel regression with Matlab code

In this article, I will explain Gaussian Kernel Regression (or Gaussian Kernel Smoother, or Gaussian Kernel-based linear regression, RBF kernel regression)  algorithm. Plus I will share my Matlab code for this algorithm.

If you already know the theory. Just download  from here.  <Download>

You can see how to use this function from the below. It is super easy.

main figure

































From here, I will explain the theory.

Basically, this algorithm is a kernel based linear smoother algorithm and just the kernel is the Gaussian kernel. With this smoothing method, we can find a nonlinear regression function.

The linear smoother is expressed with the below equation

y^* = \frac{\sum^N_{i=1}K(x^*,x_i)y_i}{\sum^N_{i=1}K(x^*,x_i)}

here x_i is the i_th training data input, y_i is the i_th training data output, K is a kernel function. x^* is a query point, y^* is the predicted output.

In this algorithm, we use the Gaussian Kernel which is expressed with the below equation. Another name of this functions is Radial Basis Function (RBF) because it is not exactly same with the Gaussian function.

K(x^*,x_i)=\exp\left(-\frac{ (x^*-x_i)^2}{2b^2}\right)

With these equation, we can smooth the training data outputs, thus we can find a regression function.

This program <Download> was made for one-dimensional inputs. If you need multi-dimension, please leave a reply, see this article. I recently made a new version for multidimensional input.

For the optimization of kernel bandwidth, see my other article <Link>.



Then good luck.
